Walkthrough: Succeeding the NA Key¶

This walkthrough runs the key succession ceremony of Key Succession and the Root Key on one local Network Authority (NA): save the key history, sign the succession with the root key, prove the new key, submit it, and restart the NA with the new key once it takes effect. Records signed by both keys then verify from the root key.

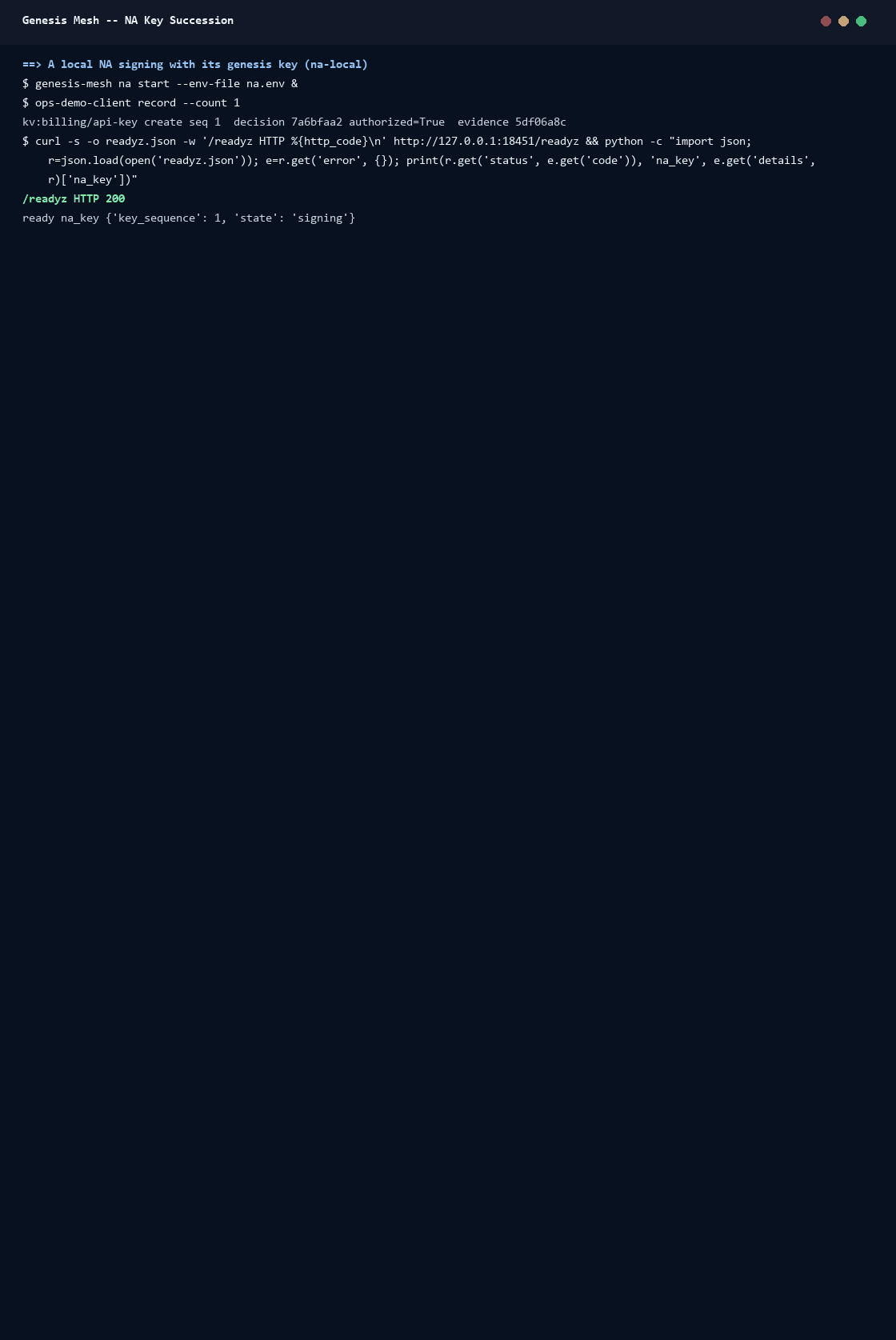

NA key succession: history, root signature, proof, submit, restart with the new key, and verification across both keys

The GIF is a real run of docs/examples/assets/scripts/key-succession-demo.py, recorded against a throwaway NA on 127.0.0.1:18451 with the evidence store on. The transcript is docs/examples/assets/images/genesis-mesh-key-succession.txt.

Note

The demo keeps the root key next to the NA, as genesis-mesh init writes it for local use. In a real deployment the root key is offline, and steps 2 and 3 below run on the offline machine (see The root key ceremony in Key Succession and the Root Key).

1. Generate the new NA key¶

genesis-mesh keygen network-authority --output na-2 --key-id na-2

Generate it where it will live. Only its public key travels to the offline machine.

2. Save the key history and sign the succession¶

genesis-mesh na succession history --na https://na.example.org --out history.json
genesis-mesh na succession sign --history history.json \
  --root-key /media/offline/root.key \
  --new-public-key na-2.pub --new-key-id na-2 \
  --effective-in 70 --out succession.json

The demo uses --effective-in 70 (seconds) so it does not wait long. The NA accepts an effective_at from 60 seconds to 30 days ahead. In production, choose a time when you can restart the instances, and allow time to tell your counterparts (step 6).

3. Prove the new key and submit¶

genesis-mesh na succession prove --file succession.json --new-key na-2.key \
  --out succession.json
genesis-mesh na succession submit --na https://na.example.org \
  --file succession.json --operator-key ops.key --operator-key-id ops

submit needs a privileged operator key. The NA countersigns the record with its current key and records it. GET /na/key-history now lists two keys: the genesis key with succeeded_at set, and the new key valid from effective_at.

4. At `effective_at`¶

The instance that still runs the old key stops signing. Its /readyz answers 503 with na_key.state: stopped, so a load balancer stops sending it traffic. An instance started early with the new key reports na_key.state: pending until effective_at.

5. Restart with the new key¶

Point the instance at the new key (NA_PRIVATE_KEY_FILE, or your key provider) and set NA_KEY_ID to the new key ID, then start it. /readyz answers 200 with na_key.state: signing and key_sequence: 2.

6. Verify across both keys¶

genesis-mesh evidence verify-export --file export.jsonl \
  --key-history key-history.json --root-key root.pub \
  --executor-keys executor-keys.json

An export that holds records signed by both keys verifies with the key history and the root key. Verified with only the genesis key (--na-public-key), the records the new key signed fail with invalid_signature. Verifiers must read the key history.

Recognition treaties at other sovereigns do not read the key history: they name your NA key. Before effective_at, ask each counterpart to issue a treaty that names the new key (see What does not follow the key history in Key Succession and the Root Key). The demo has no counterparts, so it does not show this step.
