Walkthrough: Enrolling an Edge Device¶

This walkthrough enrols one device running the edge agent, genesis-mesh-edge, against a local Network Authority (NA). An application on the device asks the agent whether it may act; the NA decides. Then the NA stops, the application makes an urgent change as break-glass, and the record uploads when the NA is back. The steps follow The Edge Agent.

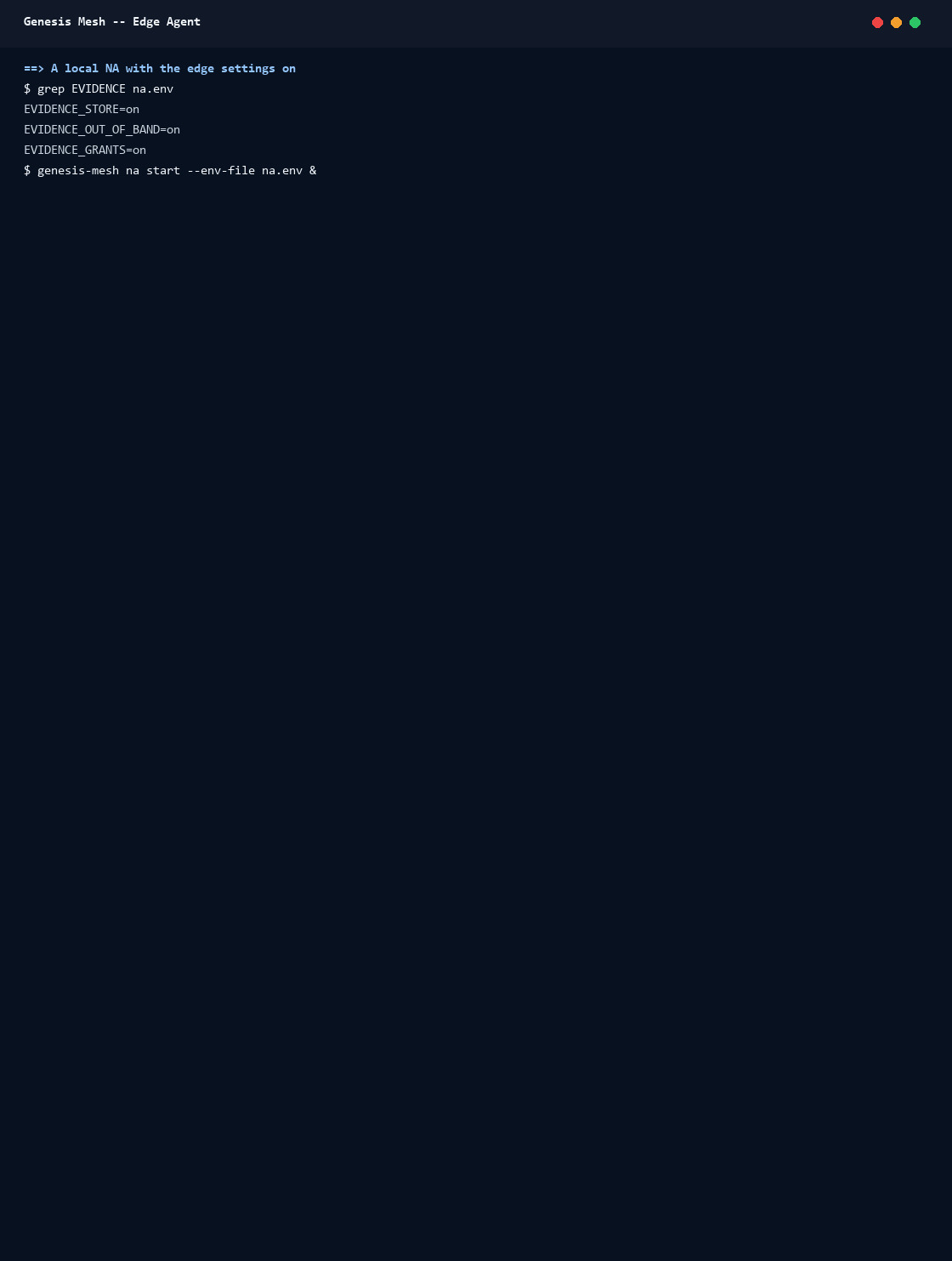

Edge agent: enrolment with a bound invite, a decision by the NA, break-glass while the NA is down, and the upload when it returns

The GIF is a real run of docs/examples/assets/scripts/edge-agent-demo.py, recorded on Linux against a throwaway NA on 127.0.0.1:18451. The transcript is docs/examples/assets/images/genesis-mesh-edge-agent.txt.

Before you start¶

The NA needs EVIDENCE_STORE=on and EVIDENCE_OUT_OF_BAND=on, both off by default; without them it refuses to create an edge invite (409 edge_requires_evidence_store). Grants on the device also need EVIDENCE_GRANTS=on. The demo turns all three on.

1. Keys, a bound invite and enrolment¶

genesis-mesh-edge init            # prints the node public key
genesis-mesh admin invite --role client \
  --node-sovereign-id site7-17 --executor-resource-prefix edge:site7-17/ \
  --recipient-key <node public key> > invite-token
genesis-mesh-edge enroll --invite-token-file invite-token
genesis-mesh-edge status

The invite is bound to the node key init printed, so only this device can redeem it. enroll prints the certificate and the executor key the NA registered (edge-…). status shows the certificate’s end and that nothing waits for upload.

The demo then issues an attestation to site7-17 for the capability secret.rotate and activates a policy that allows lifetime_days up to 90. The GIF does not show that setup.

2. The NA decides¶

With genesis-mesh-edge run running, the application asks on the agent’s Unix socket:

curl --unix-socket /run/genesis-mesh-edge/agent.sock \
  -X POST http://localhost/v1/authorize \
  -d '{"capability": "secret.rotate", "request_parameters": {"lifetime_days": 30},
       "resource_id": "edge:site7-17/kv/db", "resource_action": "rotate"}'

The answer is allowed: true with authority: decision: the NA decided. The application acts and reports the outcome (POST /v1/authorizations/<id>/outcome), and the agent records the execution evidence.

3. The NA is down: break-glass needs a justification¶

The demo stops the NA and asks again.

Without a justification the agent refuses (justification_required). The device holds no grant for the change.
With a justification ("justification": "INC-4471: key leaked in a log, rotate now") the agent allows it as authority: break_glass. The outcome is kept as a break-glass record in the outbox, and /v1/status shows na_state: unreachable and one pending upload.

The agent breaks the glass only because the NA could not be reached at all. An NA that answers with a DENY, a 429 or a 5xx never leads to break-glass (The Edge Agent, How the agent decides).

4. The NA is back¶

After the NA restarts, the agent’s next sync uploads the record: /v1/status shows na_state: answering and no pending uploads. On the NA, genesis-mesh admin edge-nodes lists the device as online, with no pending uploads and one break-glass record. The NA judges that record after the fact (Changes Outside the Controlled Path).
