Walkthrough: Verifying an Audit Pack

This walkthrough writes an audit pack on a local Network Authority (NA) and verifies it offline with both verifiers: genesis-mesh audit verify (the Python reference) and genesis-mesh-verify (its Rust port, see The Rust Verifier). It then shows two failures: a change the store does not hold, and a pack changed after the NA wrote it.

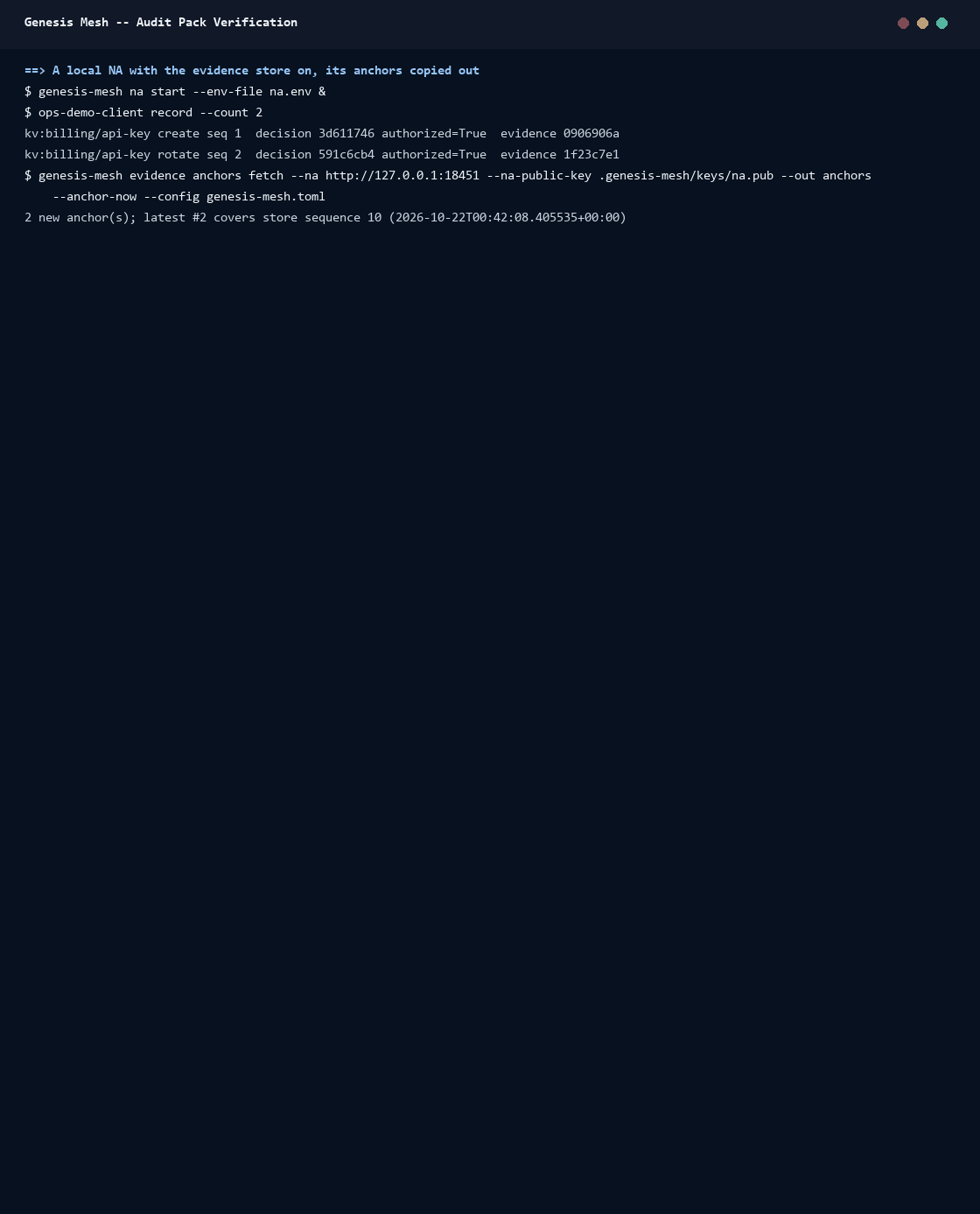

The GIF is a real run of docs/examples/assets/scripts/audit-verify-demo.py, recorded against a throwaway NA on 127.0.0.1:18451. The transcript is docs/examples/assets/images/genesis-mesh-audit-verify.txt.

Before you start

• The NA runs with the evidence store on (EVIDENCE_STORE=on, off by default). The demo also turns on out-of-band records.

• You hold the root public key of the NA’s genesis block, received out of band. The demo uses the one genesis-mesh init wrote next to the NA; a real auditor never takes it from the NA’s host.

• genesis-mesh-verify is built from the Rust SDK, or downloaded from its release and checked against its published digest.

1. Copy the anchors out

genesis-mesh evidence anchors fetch --na https://na.example.org \
  --na-public-key na.pub --out anchors --anchor-now \
  --operator-key auditor.key --operator-key-id auditor

The NA anchors its current head and the command copies every anchor into anchors/. Keep that directory on storage the NA’s operators cannot change (Evidence Anchors). The demo runs the governed actions first, so the anchor covers them.

2. Write the pack

genesis-mesh audit pack --na https://na.example.org --out pack \
  --operator-key auditor.key --operator-key-id auditor

A read-tier key is enough. In the demo the pack holds entries 1 to 10 and ends at anchor 2 (Audit Packs).

3. Verify it offline

genesis-mesh audit verify pack --anchor root.pub --known-anchors anchors

The result is VERIFIED: the manifest is the NA’s, every file matches it, the NA key comes from the history the root key signed, and the range ends at an anchor you hold.

4. Check it against a log kept elsewhere

--changes takes changes from a source outside Genesis Mesh, here a CSV with two changes from a cloud activity log. One of them, kv:billing/db-password update, was never reported to the NA:

genesis-mesh audit verify pack --anchor root.pub --known-anchors anchors \
  --changes changes.csv

The pack fails with change_unmatched for that change: a change your log holds and the store does not (Verifying a Pack, Reading a failure). This is the only way to find a change nobody reported.

5. The same verdicts from the Rust verifier

genesis-mesh-verify pack pack --anchor root.pub --known-anchors anchors
genesis-mesh-verify pack pack --anchor root.pub --known-anchors anchors \
  --changes changes.csv

The first exits 0 (verified), the second exits 1 with the same change_unmatched. Agreement shows that neither install is broken. It does not show that the specification was read correctly: the Rust verifier is a port of the reference (see The Rust Verifier).

6. A changed pack

The demo changes one byte of pack/entries.jsonl (create becomes Create) and verifies again. Both verifiers fail with manifest_digest_mismatch on entries.jsonl and exit 1. Get the pack again from its archive.

In this case both verifiers print entries None to None and #None where a store position would be: a changed file stops verification before the range is read.
